We request you to refer following points for your reference purpose.

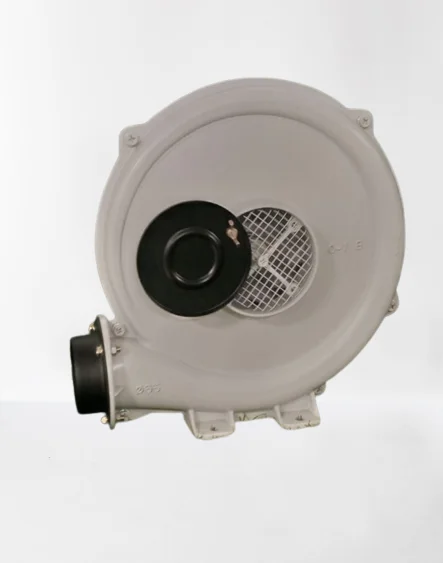

Point 1 : Product Photographs Shown the Real Image of The Centrifugal Air Blower Model Number YBCB-CX-65 For Brand of Yash

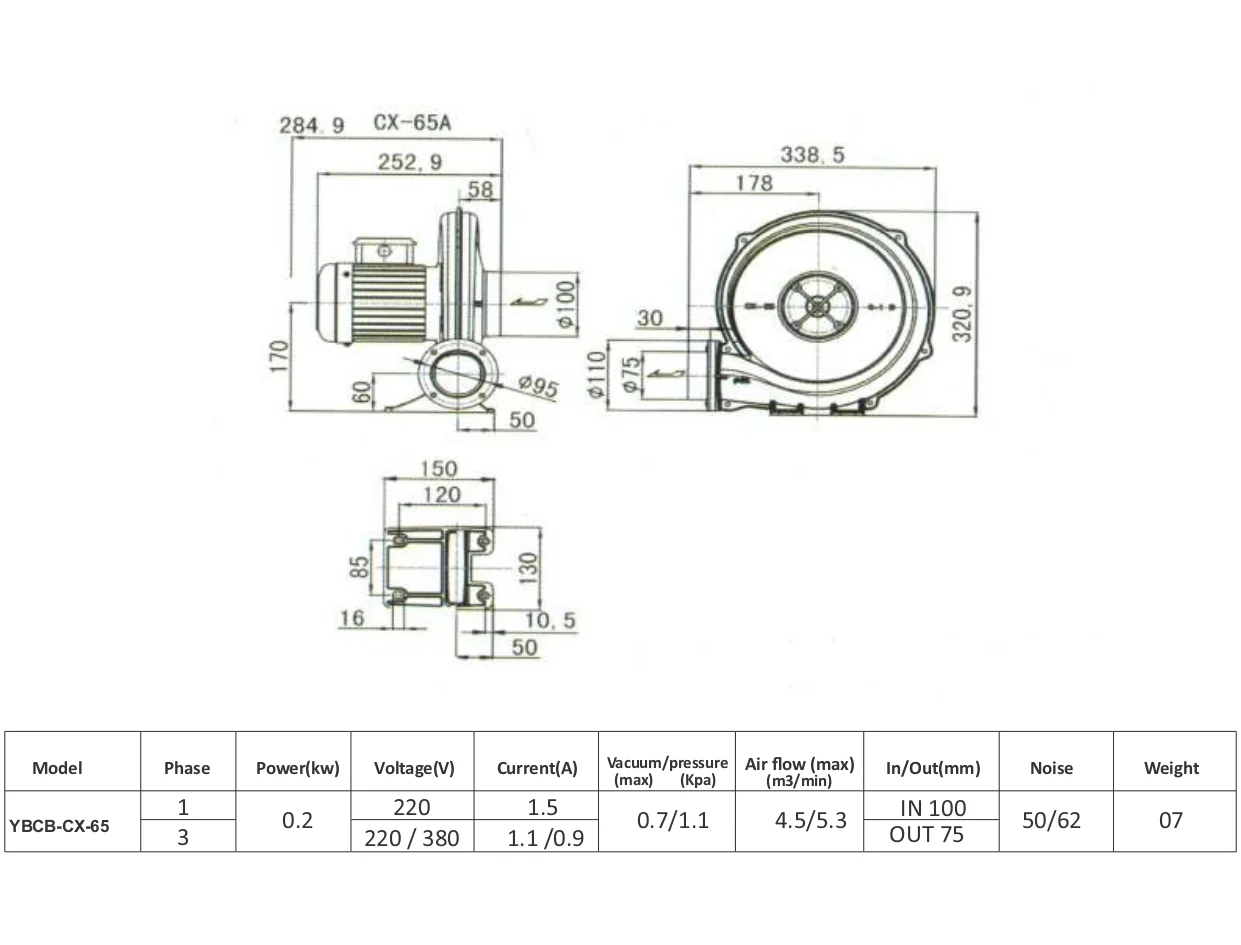

Point 2: Technical Details in other parameters are Displacement : 270-330 CMH; Vacuum : 700 PA; Pressure : 1100 PA; Inlet Size : 100 mm; Outlet Size : 75 mm; Power : 0.18 KW / 0.25 Hp
Point 3 ; This Product has Power Supply Three Phase.
Point 4 : Motor Brand : YASH- 2800 RPM - Flange Mounted
Point 5: Working Test Certificate Avilable With End User Name
Point 6 : Product Has One Year Warranty Against Manufacturing Defect
Point 7 : Please Consider The Rates Including With Freight Charges.
Point 8: We can use this material in many application for the purpose of blowing the Air.
We request you to refer following points for your reference purpose.
Point 1 : Product Photographs Shown the Real Image of The Centrifugal Air Blower Model Number YBCB-CX-65 For Brand of Yash
Point 2: Technical Details in other parameters are Displacement : 270-330 CMH; Vacuum : 700 PA; Pressure : 1100 PA; Inlet Size : 100 mm; Outlet Size : 75 mm; Power : 0.18 KW / 0.25 Hp
Point 3 ; This Product has Power Supply Three Phase.
Point 4 : Motor Brand : YASH- 2800 RPM - Flange Mounted
Point 5: Working Test Certificate Avilable With End User Name
Point 6 : Product Has One Year Warranty Against Manufacturing Defect
Point 7 : Please Consider The Rates Including With Freight Charges.
Point 8: We can use this material in many application for the purpose of blowing the Air.
| I/P Supply | 415V, 50hz, Three Phase |
|---|---|
| AMPS(A) | 0.44 |
| Power (W) | 182.6 |
| RPM | 2800 |
| Airflow (CMH) | 300 |
| Airflow (CFM) | 177.5 |
| Static - PR(mm-wc) | 112 |
| dBA | 60 |
| CAP. μf | - - - |
| ADMISSIBLE AMBIENT TEMP | 55 |
| Weight (KG) | 7 |
